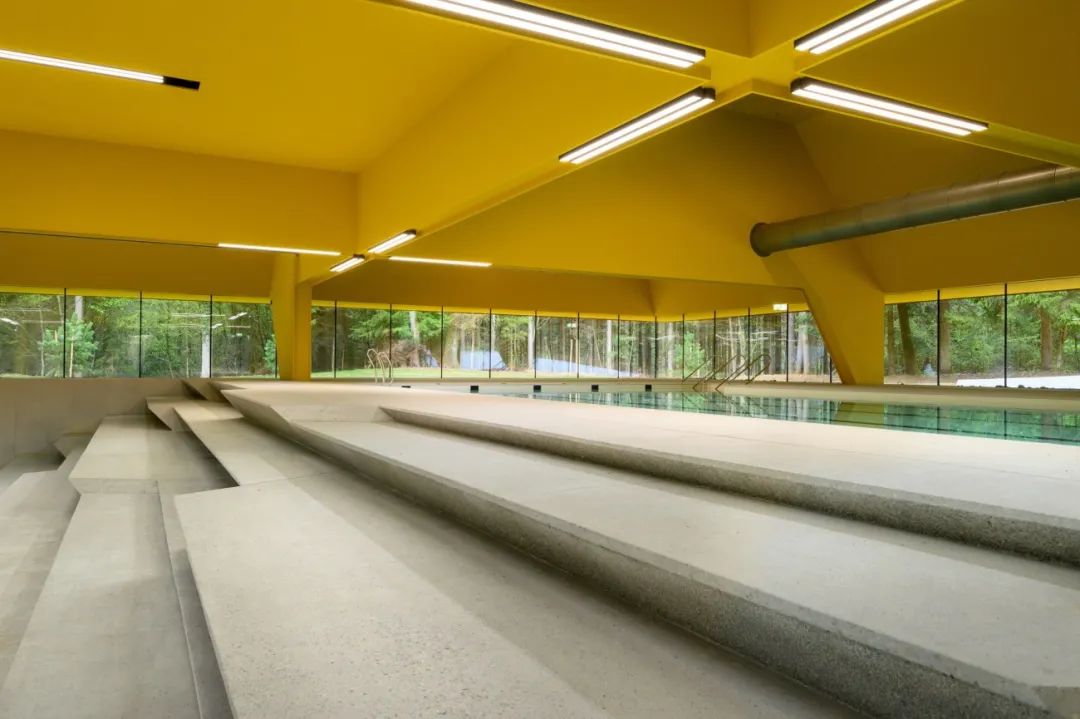

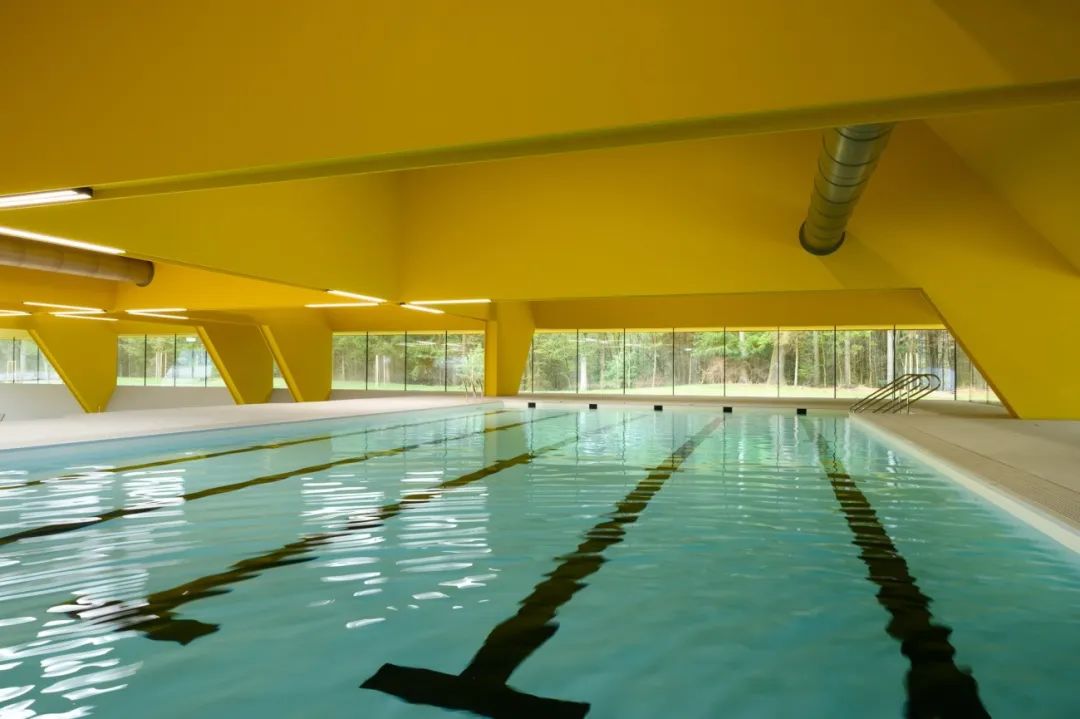

建筑在空间中呈现的低调外观是由低矮的浮动屋顶实现的,周围的景观可以在屋顶下流过游泳池。同时,建筑的屋顶是容纳所有功能的体积,不需要直接接触水面。功能安排确保游泳池空间上方的天花板高度较高,而接待处和更衣室的天花板高度较低。屋顶的结构设计以隐藏在功能隔墙中的墙梁为基础,允许大跨度,并且几乎不需要垂直支撑。整个周边的光线营造出屋顶体积悬停在泳池表面之上的印象,而从内部可以看到周围大自然的广阔视野。建筑入口侧的悬臂屋顶充当天篷,与挖入的圆形剧场表面一起构成了外部入口平台。
The building's subdued appearance in the space is achieved by the low floating roof, under which the surrounding landscape is allowed to flow across the pool. At the same time, the roof of the structure is the volume housing all the program, which does not require direct contact with the water surfaces. The program arrangement ensures a taller ceiling height above the pool space, and a lower ceiling height at the reception desk and changing rooms. The structural design of the roof, featuring a grillage based on wall beams concealed in the program's partition walls, allows for large spans and requires few vertical supports. The light appearing along the entire perimeter creates and impression of the roof volume hovering above the pool surface, while wide views of the surrounding nature open from the interior. The cantilever roof on the building's entrance side acts as a canopy, which, together with the  dug-in amphitheatre surface, forms the exterior entrance platform.

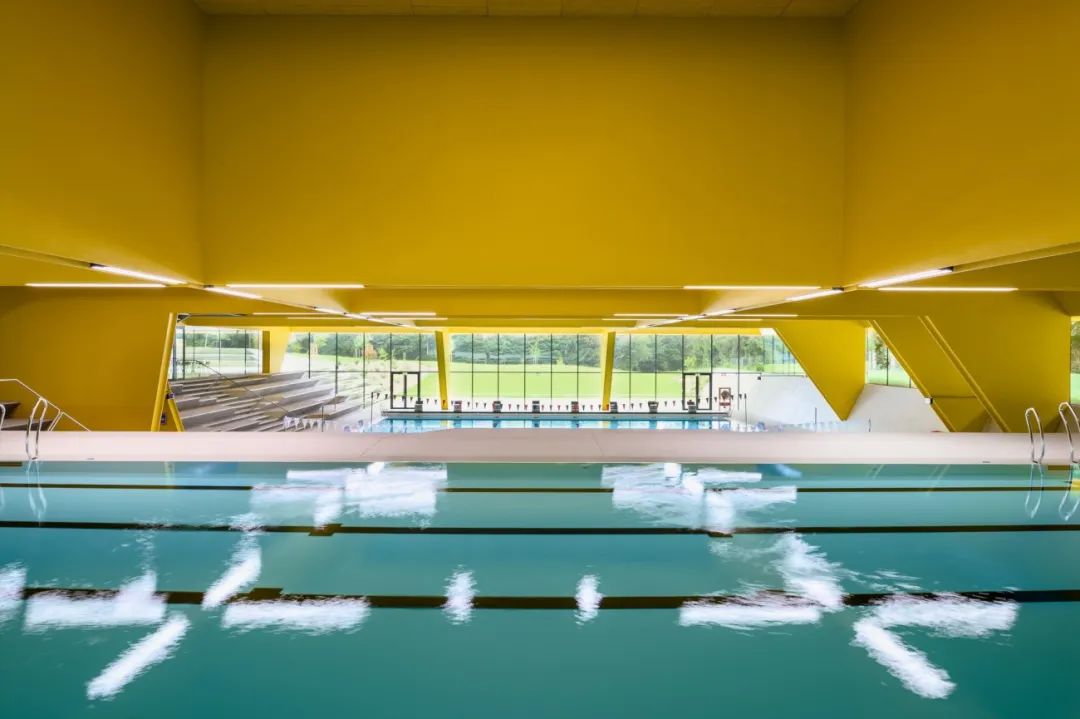

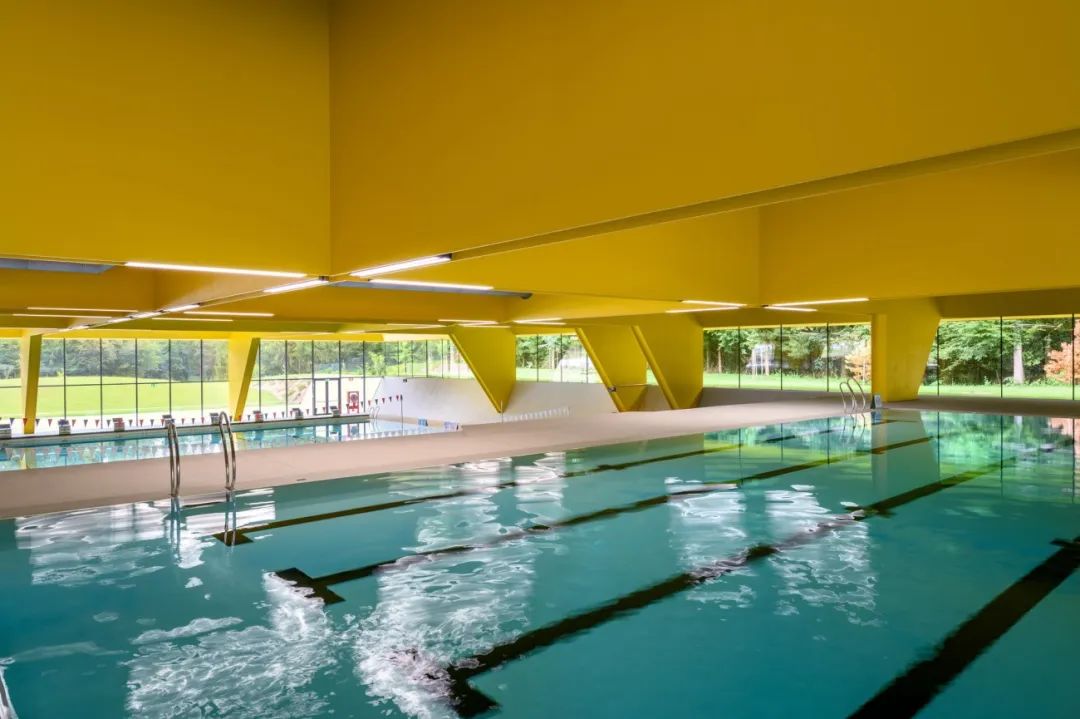

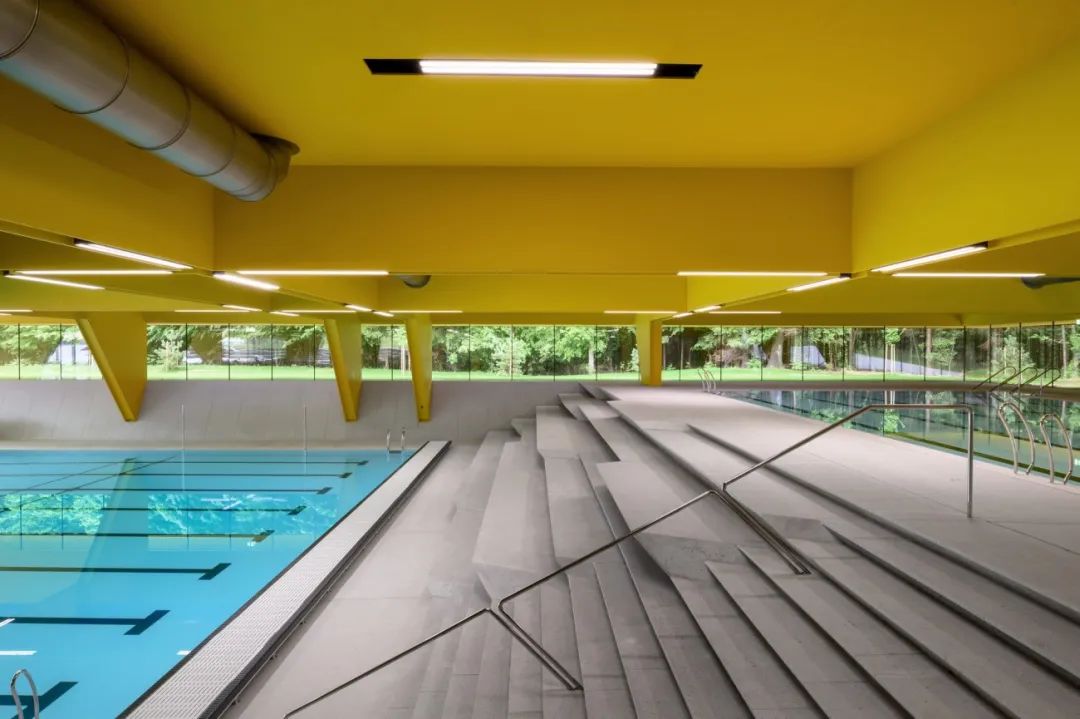

游泳池综合体的材质非常简单而克制。浮动屋顶的立面外墙覆盖着天然的未上漆木板,随着时间的推移,木板会老化,从而使建筑与周围森林的材质更加融合。屋顶与倾斜的几何形状一起,在空间中呈现出对当地乡村发展的诠释。露天剧场空间的设计,即不同楼层的功能平台,是同质的,采用当地混凝土制成,表面处理不同。唯一的材料重点是在建筑内部。浮动游泳池屋顶体积的底部均匀地涂上强烈而温暖的色调。因此,尽管游泳池空间没有填充的周边墙壁,但天花板却足够明显,可以作为用户的舒适庇护所。同时,以这种方式强调的内部空间对周围外部空间的用户来说是一种谨慎的邀请。
The materiality of the pool complex is very simple and restrained. The facade envelope of the floating roof is covered in natural, unvarnished timber boards, which will in time age and thereby further blend the building with the materiality of the surrounding forest. Together with the tilted geometry, the roof appears in the space as a paraphrase of the local rural development. The design of the amphitheatral spaces, i.e. the program platforms on the various levels, is homogenous and executed in local concrete with different surface finishes. The only material accent is found in the building's interior. The bottom side of the floating pool roof volume is uniformly coloured in an intense, warm hue. The ceiling is thus rendered sufficiently present so as to act as a pleasant shelter for users, despite the pool space's lack of filled perimeter walls. At the same time, the interior being accented in this way acts as an discreet invitation for the users of the surrounding exterior space.
